JOINTING SPIRAL CUTTERHEADS – 2175

APPLICATION:

Jointing and shaping of hard or soft solid wood with big chip evacuation.

MACHINE:

Shapers and moulders.

TECHNICAL INFORMATION:

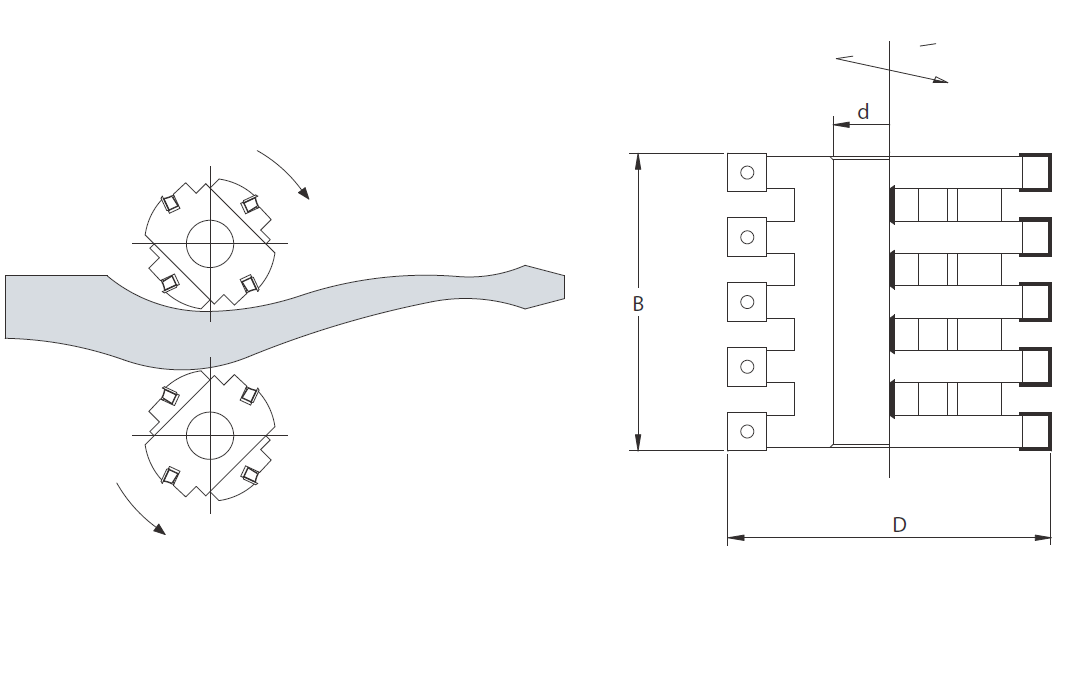

Bore ” d ” from 35 to 40 mm. Manufactured with solid carbide micrograin reversible
knives mm 12x12x1,5. With staggered spiral cutting edges, high feed speed and very
good chip evacuation. Cutter body made by high resistance ERGAL light alloy.
D. 100 – n= 8.000/13.500 min-1
D. 125 – n= 6.000/10.500 min-1
