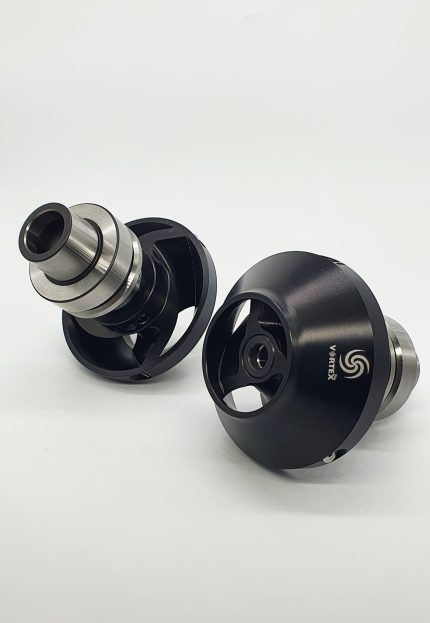

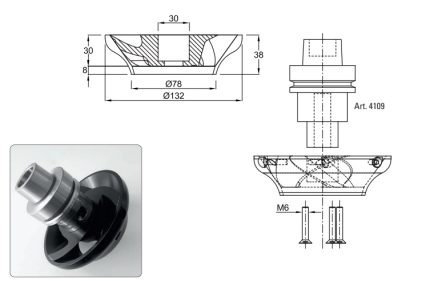

EXTRACTION TURBINE 4305 “VORTEX PLUS”

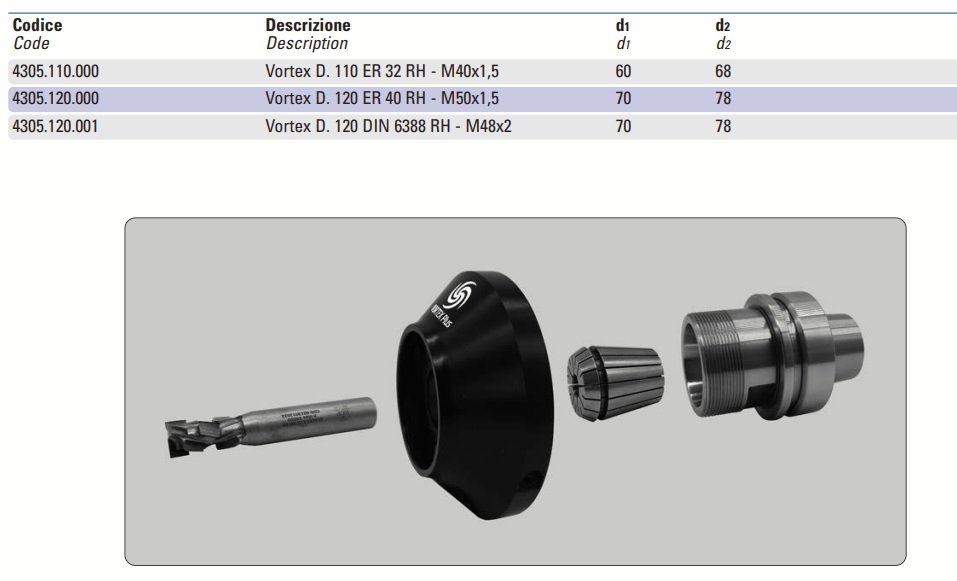

Vortex Plus is a very easy system to assemble. Replaces the standard collet chuck clamping nut. Suitable for any type of HSK or ISO 30 chucks –
ER32, ER40 and Din6388 (EOC25) collets with RH rotation. New turbine design with extraction bringing the bran up to the extraction inlet.
The advantages are:
– Absolutely silent operation due to the absence of air turbulence. The system is completely enclosed on the outside periphery.
– Perfect upward transfer of powder directly to the CNC machine’s extraction system.
– Improves the cleanliness of the worktop and machine, saving time in the production process.
– Made of special lightweight ERGAL alloy with surface hardening.
– Perfectly balanced G2,5 at 20000 RPM.
– 6 notches for easy tightening.
– Packaged in a plastic box and a tightening wrench included.
